Single-Axis

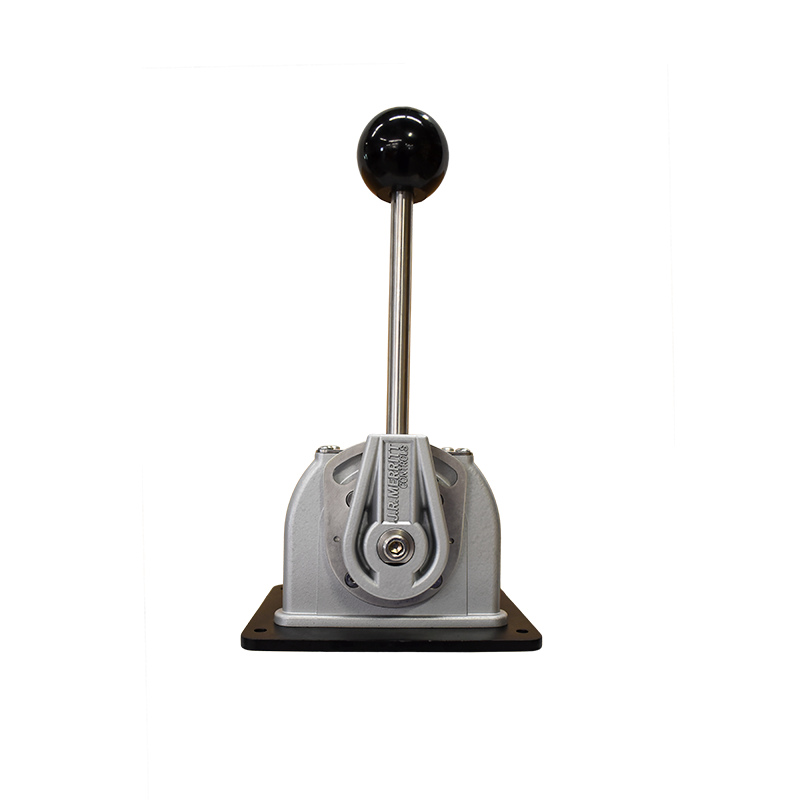

Merritt PROXL
The PROXL is a heavy-duty, single-axis joystick built for both step and stepless AC/DC control. Designed with a rugged cast body and engineered as a direct replacement for legacy master switches, the PROXL offers durability, easy integration, and adjustability for demanding industrial applications.
Overview
The product is highly adjustable to meet a variety of application needs.
Parts can be replaced directly in the field, minimizing downtime.
Allows for in-field conversion
Easy to install in existing systems
It serves as a direct swap for competitor joysticks and switches.
No extra modifications are needed, thanks to the included conversion plates.
It provides a simple upgrade path from older equipment.
Maintenance and parts replacement are easier and more efficient.
Axis Options
-
• Single
Output Options
-
• 4-20mA
-
• Contacts
Twist w/ Contacts
Available in different sequences and with or without detent.
-
• Encoder
-
• Potentiometer
-
• Transformer
Joystick Action
-
• Spring Return
Spring Return
Handle returns to center
Mounting Style
-
• Drop-in (From Above)
Compatible Handles
Applications
The Pro XL mill duty joystick is utilized in heavy-duty cycle applications where life and durability is essential. Typical applications include:
• Mills & foundries
• Mining vehicles
• Logging machinery
• Process lines
• And More
Industries
Specifications
Download
General Data
# of Axis
Output Options
Joystick Action
Handle Travel
Max # of Steps
Handle Compatibility
Life
Materials
Est. Shipping Weight
Est. Shipping Dimensions
Mounting Data
Mounting Style
Mounting Footprint
Environmental Data
IP Rating
Operating Temperature
Storage Temperature
Electrical Data
Contact Specifications
Additional Specifications
