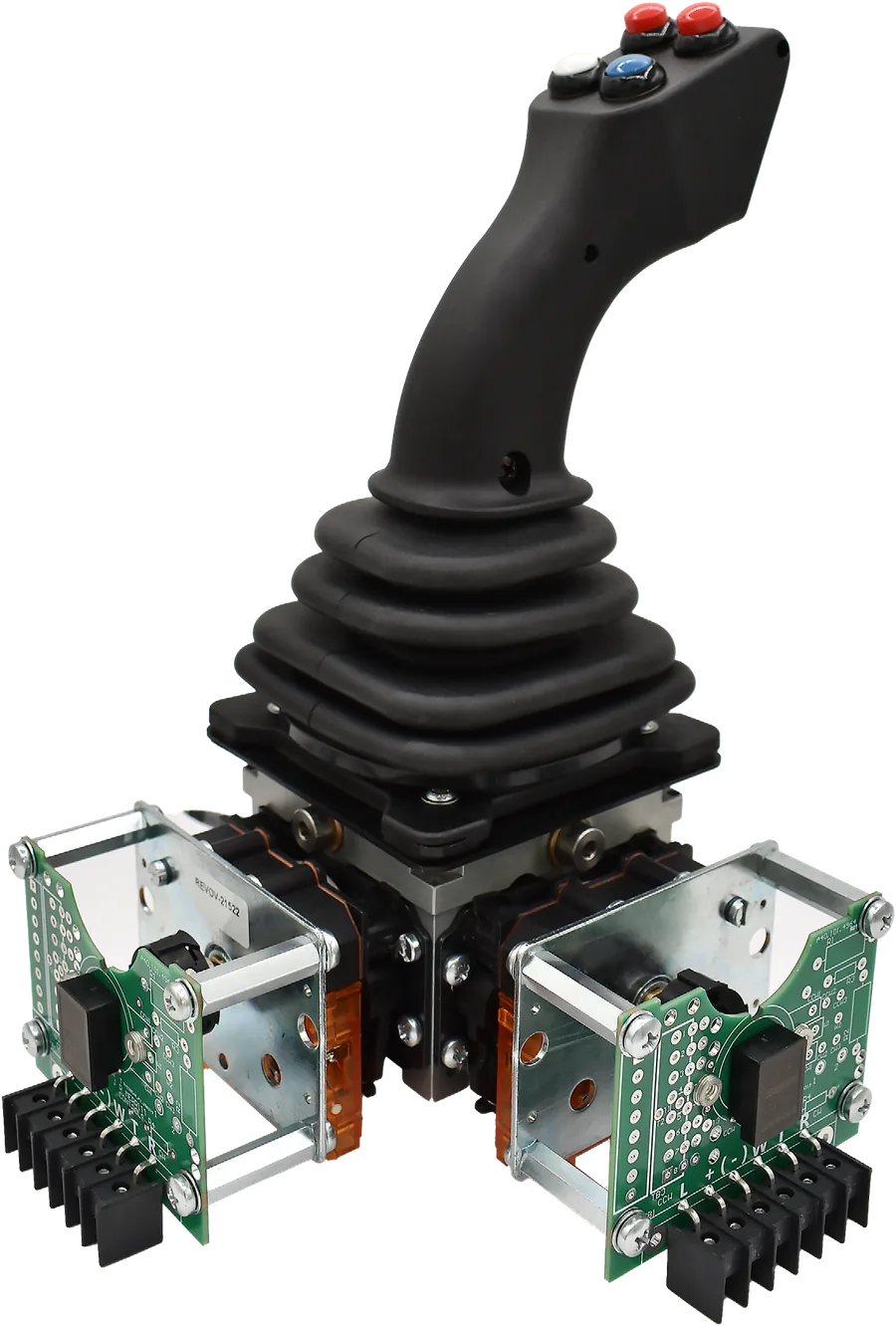

Meet the Merritt REVO
The rugged joystick, built for flexibility.
pivot assembly
Heavy-duty equipment demands controls that can keep up. Introduced in May 2026, the Merritt REVO is J.R. Merritt’s next-generation mill-duty joystick—built on the rugged durability customers expect, with expanded customization and easier field-service capabilities.
Designed for a wide range of heavy-duty machinery, the Merritt REVO can be configured to meet specific equipment and application requirements while delivering the responsive performance needed in demanding industrial environments.
Built
to Last

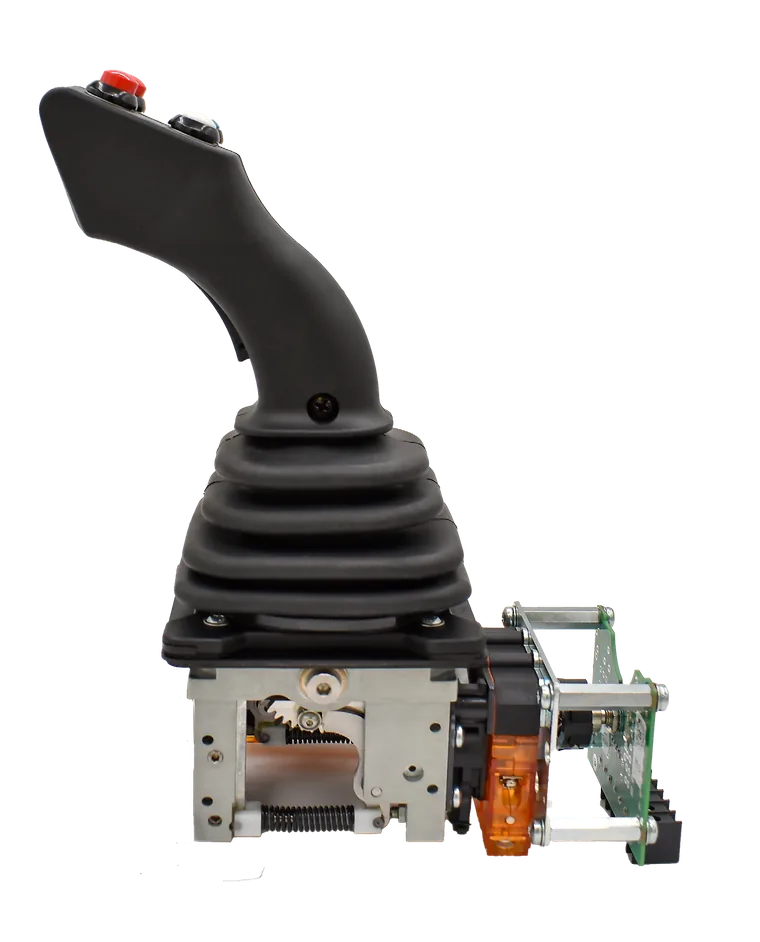

- All-metal, case-hardened core assembly engineered for long service life.
- Metallurgically treated yoke and pivot mechanisms reduce friction, supporting smoother operation and improved wear resistance.

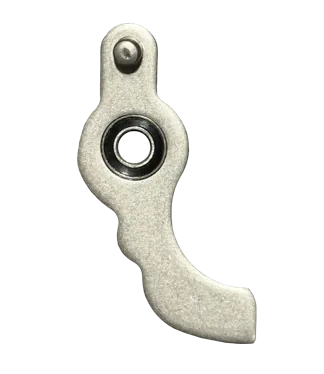

- Four independent spring-return axes, each equipped with ball bearings for consistent, controlled response.
- Durable mechanical construction designed for reliable performance in demanding industrial applications.
In-Field
Serviceability

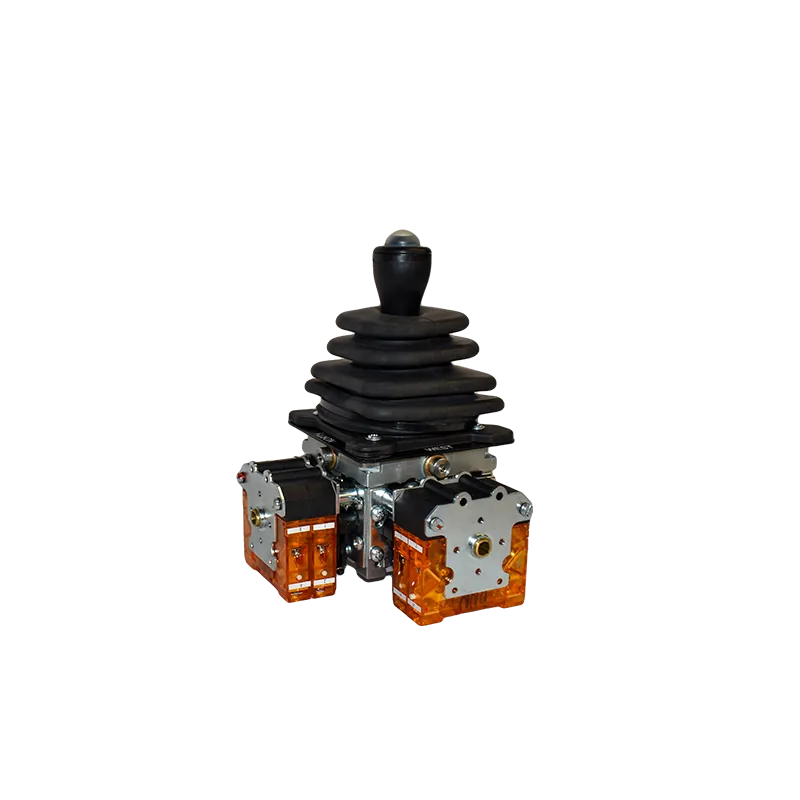

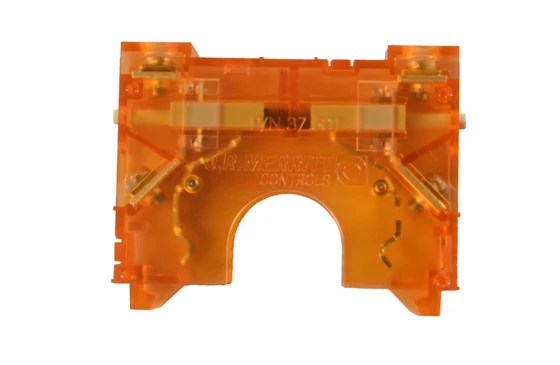

- New modular, easily swappable contact blocks compatible with both AC and DC currents.
- Stepped or stepless operation, configurable to suit the application.
- In-field adjustable motion range using factory-set gate screws—no additional components or disassembly required.

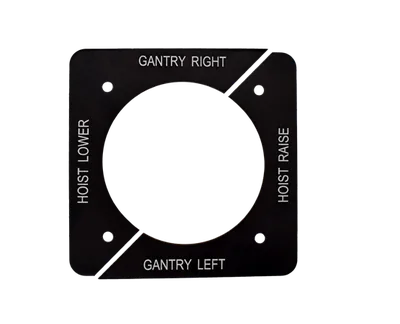

- Easily swappable nameplates for simple labeling changes with no handle removal necessary.
Configured
for Your Machine
- Customizable axes, actions, and handle travel to suit equipment and operator requirements.
- Integration options include potentiometers, analog amplifiers, transmitters, converters, transformers, and encoders.
- A wide-shaft handle option supports up to a 12 mm handle shaft for additional device integration and expanded handle functionality.
- Each Merritt REVO configuration is reviewed by J.R. Merritt’s U.S.-based technical team against project specifications to help ensure the finished joystick meets the application’s needs.

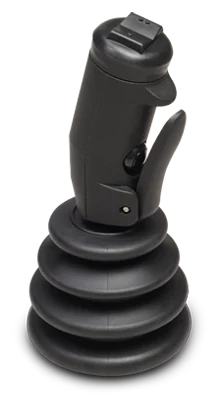

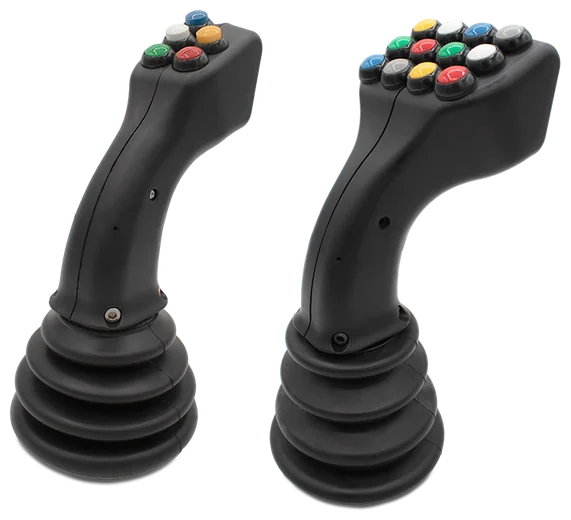

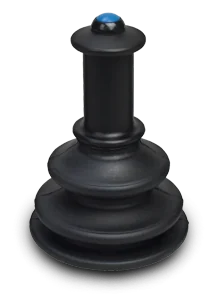

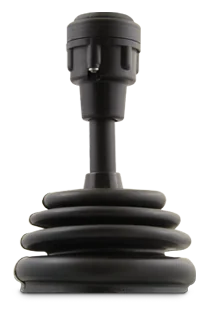

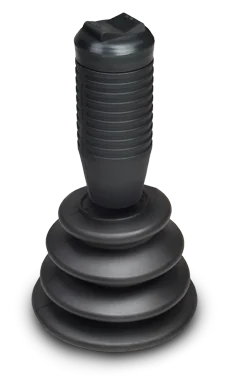

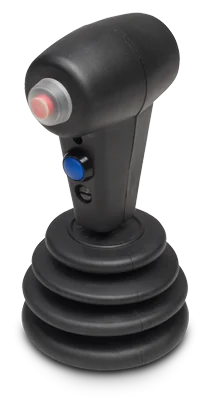

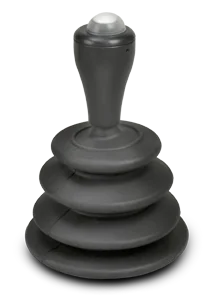

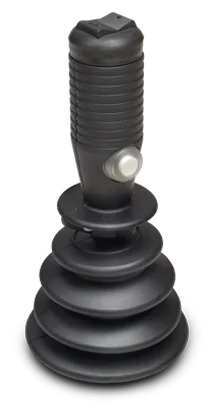

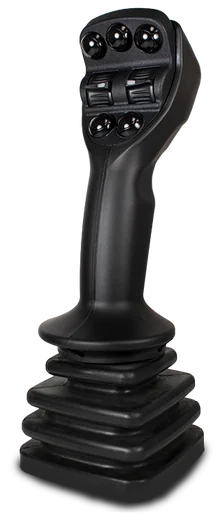

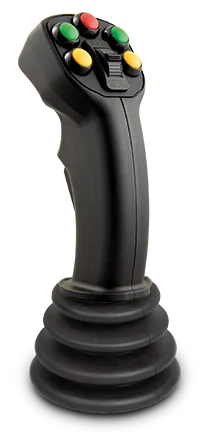

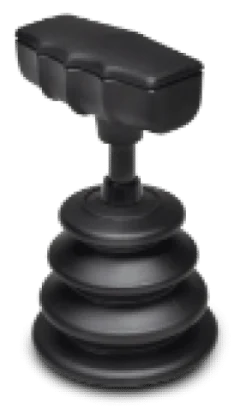

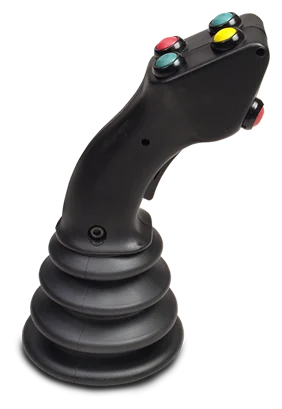

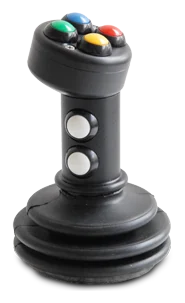

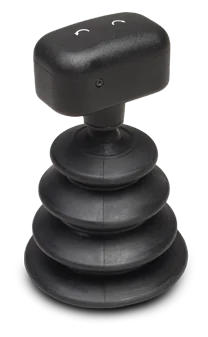

Compatible Handles
14 handle styles · Scroll, drag or use the arrows

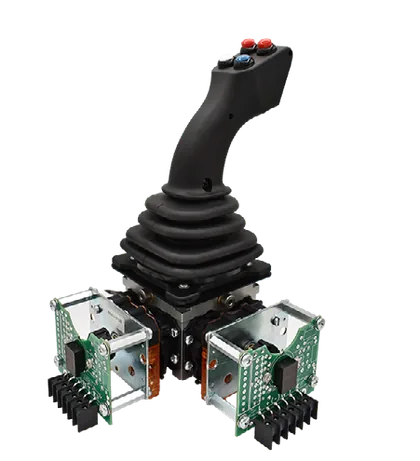

Advancing
to REVO
The Merritt REVO is built to drop into demanding industrial crane joystick applications, and it raises the bar on durability, serviceability and configurability. Here's what you gain.
MERRITTREVO| Single or Dual Axis MotionNickel chromium gimbal mechanism | |
| All Metal ConstructionHeavy-duty, rugged design | |
| Custom Drive ArrangementsSingle or dual axis options | |
| Up to 2 Distinct Spring Returns1 for each axis | |
| Up to 4 Distinct Spring ReturnsREVO ONLY1 for each axis pole | |
| Case-Hardened Pivot AssemblyRated for 20 million life cycles | |
| Configurable OutputsDiscrete and/or proportional | |
| Stepped/Stepless Speed ControlUp to 7-0-7 detents | |
| Sealed Panel-MountingStandard IP54 above the panel | |
| Numerous Handle Configurations14 handle options | |
| Wide-Shaft CompatibleREVO ONLYSupports ø12mm to fit extra handle devices | |
| Adjustable Hard StopREVO ONLYRestrictor gate not required | |
| Easy Nameplate SwappingREVO ONLYNo handle removal necessary | |
| AC Rated Modular ContactsCam-actuated, snap-in blocks | |
| AC/DC Rated Modular ContactsREVO ONLYCam-actuated, snap-in blocks, DMDB with magnetic blowouts |
Disclaimer: This chart is intended for reference only and should not be used as the sole basis for equipment selection. Please consult with your sales representative for detailed specifications and application-specific guidance.
Built for Demanding Applications
Where the REVO goes to work.
Construction / Off-Highway
Cranes
Forestry
Mining
Oil & Gas
Ports
Steel
Waste & Recycling
Wood & Paper
Made in America.
Backed by Real People.
The Merritt REVO reflects more than 40 years of application expertise and direct customer feedback. It is designed, engineered, and manufactured in Stratford, Connecticut, with U.S.-based assembly, sourcing, and customer support.
From the initial configuration discussion through the life of the product, customers can rely on responsive U.S.-based technical support personnel who understand the equipment, application, and operating environment.
Ready to
Build Yours?
The Merritt REVO is a rugged, configurable mill-duty joystick engineered for demanding industrial environments, including construction and off-highway equipment, cranes, forestry, mining, oil and gas, ports, steel, waste and recycling, and wood and paper operations.
Explore the full specifications on our website or contact J.R. Merritt Controls for a customized quote.
