Heavy Mill Duty Joystick

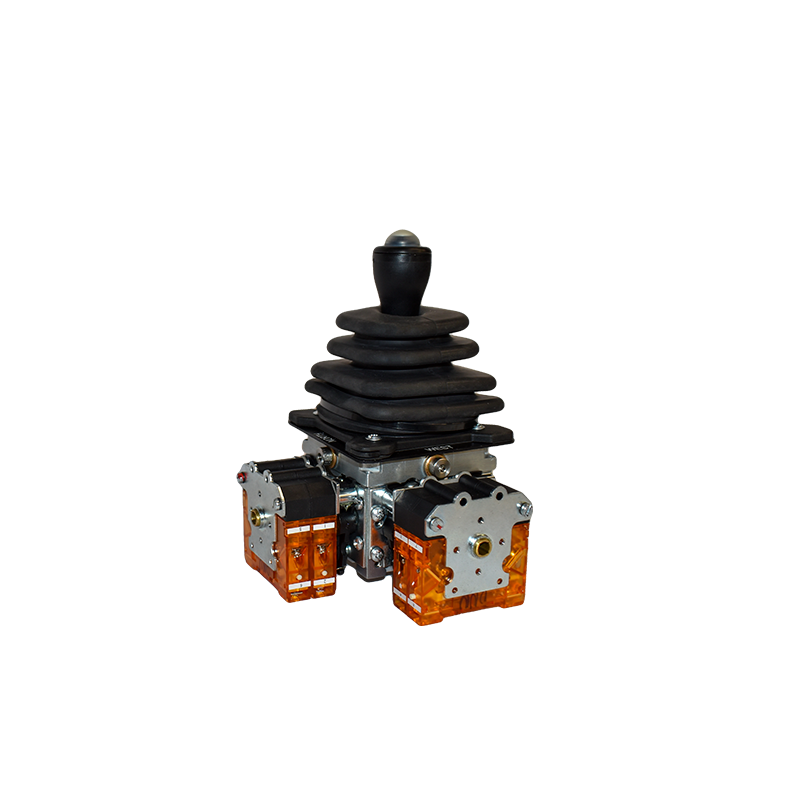

Merritt REVO
The REVO is a heavy duty joystick engineered for demanding industrial environments where durability, precision and reliability are critical. Built with a robust design and high quality components this joystick delivers smooth, responsive operation. Available with interchangeable shaft diameter for versatile application and field adjustable components.
Overview
Field-adjustable components
Stepless or stepped control with up to 7-0-7 detents
Up to 36 degrees of deflection with spring return for smooth, consistent operation
Axis Options
-
• Single
-
• Dual
Output Options
-
• 4-20mA
-
• Encoder
-
• Contacts
-
• Potentiometer
-
• Transformer
-
• Hall-Effect
Handle Travel Options
-
• Custom Gate
Custom
Available upon request in pattern of your choice
-
• Open Gate
Open Gate
Unrestricted handle travel up to +/- 36°
-
• Cross Gate
Cross Gate
Guided handle travel up to +/- 36°
Joystick Action
-
• Friction Brake
Friction Brake
Handle holds throughout
-
• Maintained
Maintained
Handle holds at detent steps
-
• Spring Return
Spring Return
Handle returns to center
Mounting Style
-
• Panel (From Below)
Compatible Handles
Applications
The REVO Joystick is utilized in heavy-duty cycle applications where life and durability is essential. Typical applications include:
Cranes (STS, RTG, overhead, foundry, portal, & more)
Steel mill process control
Logging
Mining machinery
Offshore drilling equipment
And more
Specifications
Download
General Data
# of Axis
Output Options
Joystick Action
Handle Travel
Gate
Max # of Steps
Handle Compatibility
Life
Est. Shipping Dimensions
Mounting Data
Mounting Style
Mounting Footprint
Environmental Data
IP Rating
Operating Temperature
Storage Temperature
Electrical Data
Contact Specifications
Additional Specifications
