Adjustable, heavy duty, body contoured operator seat for a range of industrial applications. Available with a range of options as a standalone seat or as a part of a complete operator chair system.
• Large range of adjustment features
• High backrest of optimum back and side support
• Independent backrest, seat height, slope, and fore and aft adjustment
• Mechanically adjustable lumbar support
• Seat cushion tilt and fore/aft adjustments
• Full hydraulic and spring - dampened mechanical suspension system with "Dial In" weight compensation
• Field replaceable cushions
• Document pouch

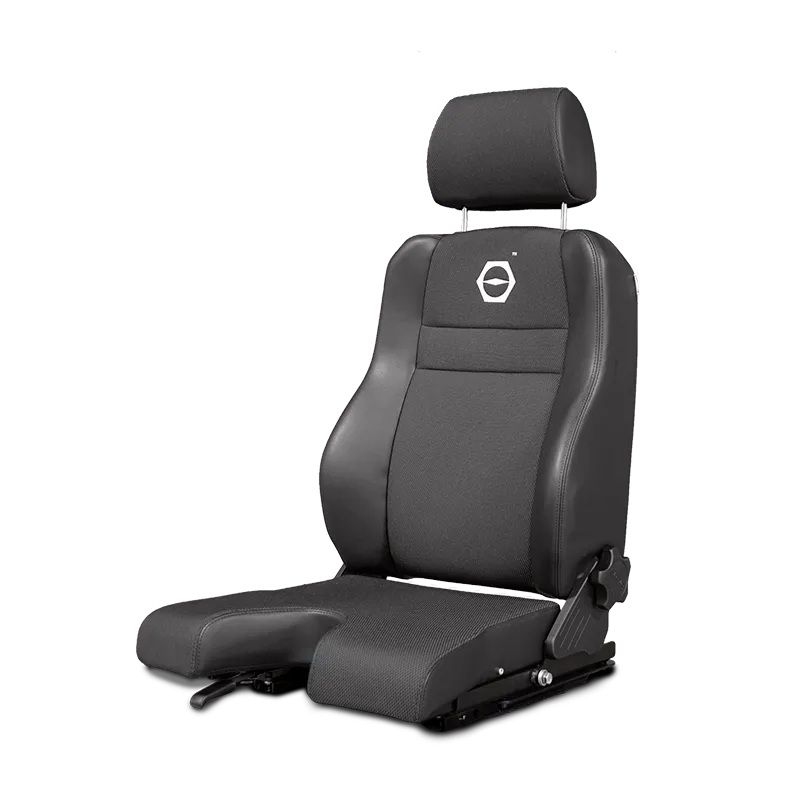

Velour seat cushions. Durable and easily replaceable in the field

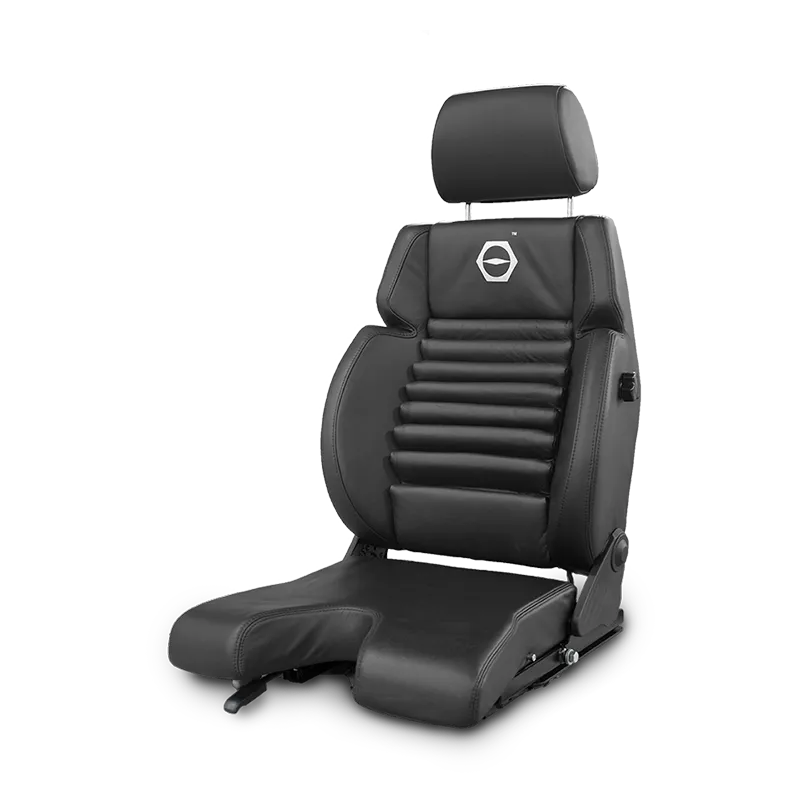

Vinyl seat cushions. Favored for their ease of cleaning.
• 8" Range
• 16" Range
Suspensions with mechanical lever adjustment. Features height adjustment of up 2.4 in [60 mm] and weight up to 287 lbs [130 kg].
Pneumatic suspensions with automatic weight adjustment, adjustable shock absorbers and fore / aft isolator. Features height adjustment of up 3.2 in [80 mm] and weight up to 330 lbs [150 kg].
• 360° Swivel
• 7" Riser
• 4-Point Harness
• Lap Seat Belt
• Operator Presence Switch
Praised for durability and adjustability, the Grammer Actimo seat has become the first choice in industrial, off-highway, mill, construction, agriculture, port and material handling applications.
- Highly adjustable and durable
- Field replacement cushions and parts
- Velour or vinyl upholstery
- Armrests with tilt and height adjustments
- 2-point retractable seat belt
- 4-point shoulder harness
- Operator presence switch
- 3 Step (weight up to 285 lbs)
- 4 Step w/ Lift Assist (weight up to 309 lbs)
Pneumatic (Air) Suspensions
- Standard (weight up to 330 lbs)
Optional, seat mounted armrests with tilt and height adjustments.
Est. Shipping Weight
w/ suspension: 130 lbs.
w/ riser: 160 lbs.
Est. Shipping Dimensions
w/ suspension: 47 in. x 32 in. x 32 in.
w/ riser: 42 in. x 42 in. x 36 in.
Optional, 360 degrees seat swivel
Armrests - Height
Armrests - Tilt
Armrests - Slide Forward / Backward
Seat - Slide Forward / Backward
Seat - Recline
Seat - Lumbar
+/-90 degrees, lockable every 10 degrees
8" [203 mm] single seat slide range
16" [406 mm] dual seat slide range (optional)
Scissor Adjust Range
Height: adjustable to 3.2" [80 mm]
Tilt: adjustable to 14 degrees
Armrest Adjust Range
Tilt: -30 degrees (down), +10 degrees (up) & flip up
Height: 1.6" [40 mm] in 8 mm increments
46 degrees with 4-point shoulder harness
Seat Cushion Adjust Range
Depth: 2.4" [60 mm] in 5 increments forward
Tilt: 3-11 degrees in 4 increments
Headrest Adjust Range
Height adjustment: 3.5" [90mm]
Tilt: 38 degrees
Reference product literature for additional specifications and options
